800℃ Break Twill Fiberglass Cloth High Silica Glass Fiber Fabric For Heat Insulation

Brand Name : Unionfull

Model Number : UPH-860

Certification : ISO9001:2008, SGS;TUV

Place of Origin : China

MOQ : 500 Meters

Price : $6.58---$6.88/m2

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 100,000 Square Meters Per Day

Delivery Time : 20 Working Days After Payment

Packaging Details : Woven bag

Material : Fiber Glass

Weight : 600gsm

Thickness : 0.7mm

Weave : Break Twill(Satin)

SiO2 : ≥96%

Temperature : ≤800℃ continuously

Contact Now

800℃ Break Twill Fiberglass Cloth High Silica Fabric For Heat Insulation


High Silica Cloth is fiberglass fabric with above 96% SiO2 because of the post treatment. Silica cloth is woven from e-glass fiber glass yarns. The post treatment--acid treatment and calcination make the fiberglass fabric with high SiO2 content, higher softening point and higher density. 600g high silica cloth is able to resist a temperature below 800℃ and the softening point is 1300℃. This high temperature high silica cloth is an ideal fireproof fabric which is also flexible, durable, abrasion resistant and corrosion resistant.

Thickness of this 600gsm high silica cloth is 0.7mm. Yarn count per cm is 18/13. Weave tyoe is satin weave. Satin is a very stable weaving compared with plain weave. Width is 91.44, 100cm or 105cm.

Data Sheet :

Items Weight Thickness Weave

Count

(CM)

 Width Temperature
UPH-860 600g/m2 ± 30 0.7mm±0.05 8HS 18/13 91.44cm ≤ 800°C


Features:

  • Abrasion resistant
  • Electrical insulation
  • Chemical, phisical properties stablity
  • High temperature heat resistant
  • Durable and tear resistant
  • Eco friendly, no pollution after burning


Application:

  1. Cutting protection
  2. Welding spatter protection
  3. Aerospace, nuclear thermal insulation

  4. Machinery industry protection

  5. Oil & gas field heat insulation cover

  6. Metallurgy, auto industry

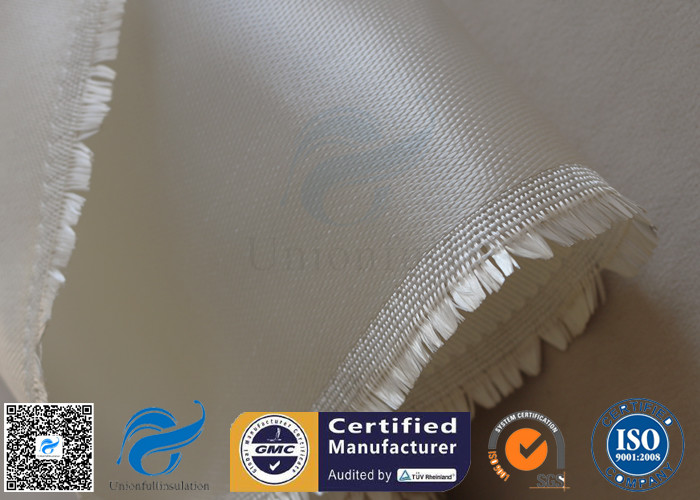

Picture:

800℃ Break Twill Fiberglass Cloth High Silica Glass Fiber Fabric For Heat Insulation
