C-glass 260℃ Fire Protection Red Color Silicone Coated Fiberglass Fabric 40/40g
Silicone Fiberglass Fabric is an alkali free, multi-function composite material that is made of high-performance glass fiber cloth, which is calendered or impregnated with silicone rubber.The chemical composition and physical structure of silica gel determine that it has many characteristics that are difficult to replace with other similar materials: high adsorption performance, good thermal stability, stable chemical properties, and high mechanical strength.
UPSC-8732D80 is 40/40g two sides coating glass fiber, total weight is 510g/m2, and 0.45mm thick. In general, the coating weight can be customized as your requirements, 20/20g, 40/40g, 60/60g, 80/80g, 100/100g, 120/120g or single side all is ok. Our regular coating color are red,gray,black, other colors can be customized.
DATA:
| Main Specifications |
| Code | Weight (g/m2) | Thickness (mm) | Width(m) | Color | Coating sides |
| UPSE-8732S80 | 520 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8732D160 | 590 | 0.5 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
| UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
Properties:
1.Low thermal conductivity: 0.035W/M·K—0.045 W/M·K±0.005
2.Anti-corrosion
good chemical resistance, oil and water resistant (scratchable)
3.Non-toxic, harmless, no adverse effects on the environment
4.Excellent high temperature insulation performance: up to 260℃
5.High tensile strength
Has good mechanical properties, soft and tough,the service life can be as long as ten years
6.Excellent insulation
Silicone coated fibeglass fabric features high grade of electric insulation and bear a load of high voltage. UV protection, anti-static
Applications:
1. Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.
2. Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
3. In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.
4. In the machinery industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, etc. are applied.
5. Tennis rackets, fishing rods, bows and arrows, swimming pools, bowling places, etc. in daily life will also be used.

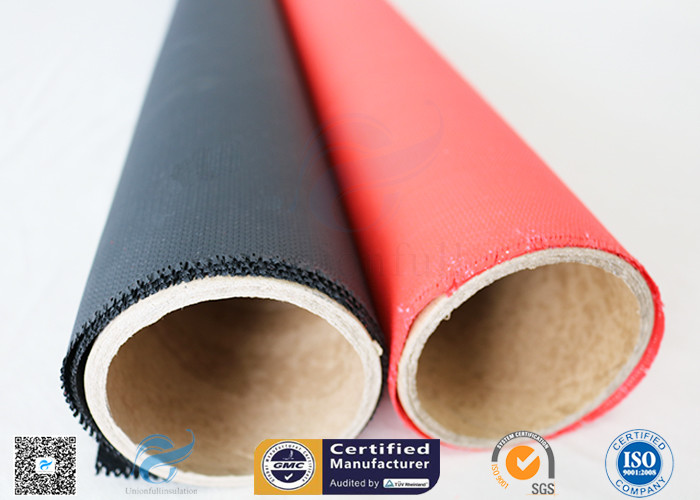

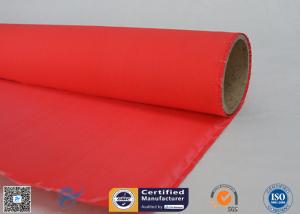

Pictures:
Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd
